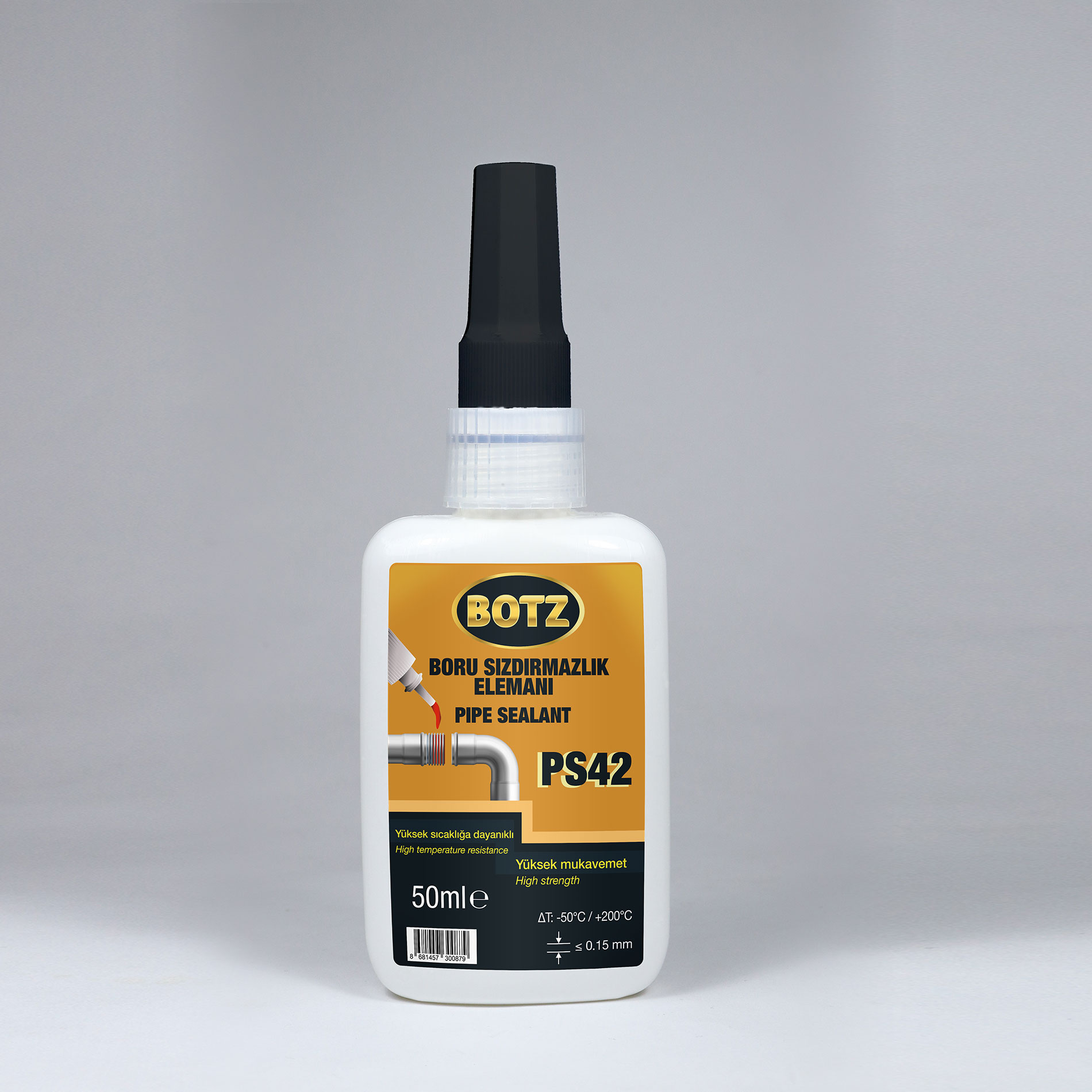

BOTZ PS42 Pipe Sealant (High Strength)
Information
100% leak-proof sealing solution for metal threaded joints
- Very high setting speed even at cold temperatues(<0°C)
- Resists high temperatures with maintaining high strength
 |
 |
Medium viscosity, high-strength pipe sealant well penetrating into fine threads, resisting up to -50°C /+200°C. Solvent-free. Non-dripping. When fully cured, will seal up to the bursting pressure of the pipe.
Seals anaerobically. Keeps its strength and sealing properties against shocks & vibrations long after the application. Used on close-fitting metal pipe threads where all kinds of water, oil, grease, and many chemicals pass. Can also be used in assembling joint parts of pressure vessels, air compressors, hydraulic systems and tanks, and in areas where resistance against vibration is required. Suitable for Type H thick metal thread joints according to TSE EN 751-1 Standard.
Features and Applications
Features
- Suitable for metal-metal and plastic-metal threaded connections
- No dirt with its non-dripping formulation
- Keeps its sealing properties against shocks & vibrations long after the application
Application
- Close-fitting metal pipe threads where all kinds of water, oil, grease, and many chemicals pass
- Pressure vessels
- compressors
- Hydraulic systems and tanks
- Areas where resistance against vibration is required
- Suitable for Type H thick metal thread joints according to TSE EN 751-1 Standard.
Usage and Instructions
Surface Preparation
1) Ensure parts are clean, dry and free from oil and grease.
2) Applied with a brush or directly from tube.
Application
1) Apply the adhesive with a 360 turn to first three leading threads of the male and female fittings.
2) Use an absorbent tissue paper to wipe off excess jointing compound in the direction of the thread.
3) Assembly parts and hold on for 24 hours at 22-24°C to ensure full curing of jointing compound.
4) For disassembly, use hand tools to remove mating parts.
5) When it is hard to dissemble at room temperature, apply local heat until reaching 250°C and disassemble while hot. Then, remove any residual cured adhesive mechanically and clean parts with a proper solvent, acetone.
Technical Details
Average handling time: 10 minutes (Conditions: 22°C)
Colour: Red
Corrosive: Non-corrosive
Flash Point: >93°C
Gap Filling: up to 0.15mm
Shelf Life: 36 Months
Specific Gravity: 1.035
Temperature range: -50°C to 200°C
Viscosity: 2000 - 5000 cPs (@2.5 rpm)
Package Size
| Inventory Code | BPS-042 | BPS-043 | BPS-044 |
| Product Code | PS42 | PS42 | PS42 |
| Packaging | 15 ml | 50 ml | 250 ml |
| Inner box | 24 | 10 | 6 |
| Box | 144 | 120 | 36 |
| Palette | 8640 | 4320 | 1296 |
